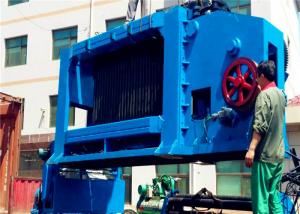

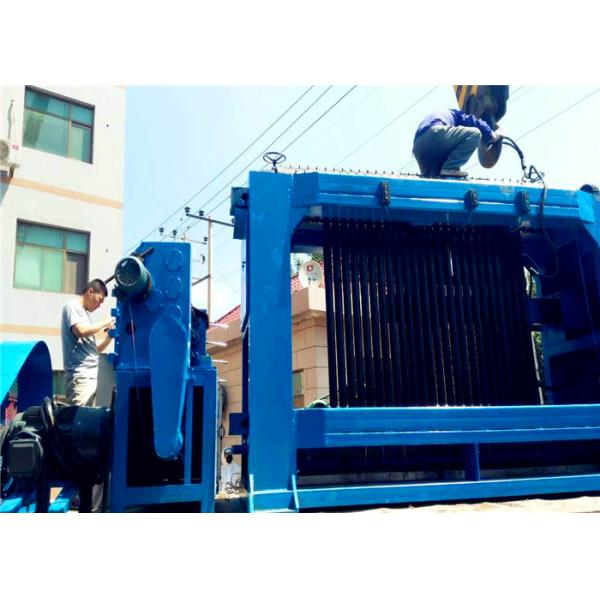

Professional Steel Net Making Machine , Automatic Weaving Machine For Gabion Box

Product Categories
HEBEI DIAOZHUO WIRE MESH EQUIPMENT CO.,LTD
Contact Now

Professional Steel Net Making Machine , Automatic Weaving Machine For Gabion Box

  • 1
  • 2

Brand Name : DIAOZHUO

Model Number : DZ60X80 DZ80X100 DZ100X120 DZ66X88 DZ64X85

Certification : CE ISO9001

Place of Origin : HEBEI, CHINA

MOQ : 1set

Payment Terms : L/C, D/P, T/T

Supply Ability : 10 sets per month

Delivery Time : 20-30 days

Packaging Details : woodencase and plastic bags

Price : variable

Material : steel welding

control : automatic stop and counter

speed : 225-265m per hour

engineer : abroad avaliable

weight : 18tons

machine type : machery or hydraulic

Contact Now

Gabion box knitting machine fully auotmatic and fasr speed ouput 2.3 m width

Gabion mesh machine is the professional machine to produce gabion mesh box, which is wildly used in protecting and sustaining bank, hillside, road and bridge, reservoir and other construction project, and it is the good material to prevent or control flood.

Gabion mesh machine adopt PLC automatic control, it has the characteristics of moving steadily, low noise, high potency, it is ideal machine for weaving gabion mesh with big specifications, big width, and big diameter.

machine details

Model

 Mesh Size(mm) Max. Width(mm) Wire diameter(mm) Twisting Number Main Drive Shaft Speed(r/min) Motor Capacity(KW) Theoretical Speed(m/h)
LNWL23-60-2 60*80 2300 1.6-3.0 3 25 11 165
LNWL23-80-2 80*100 1.6-3.0 195
LNWL23-100-2 100*120 1.6-3.5 225
LNWL23-1200-2 120*150 1.6-3.2 20 255
LNWL43-120-3 120*150 4300 1.6-3.2 5 20 2 255

our advantage:

1.Mesh Size’s range from 50*70 mm To 176*200 mm;

2.We can design the machine to produce the mesh size according to customer’s request .But the mesh size should in the range of 50*70 mm To 176*200 mm;

3.Range of galvanized wire:2.0mm~4.0mm(for different mesh size pls find the parameter in the specification);

4.Range of PVC coating galvanized wire: ≤5.0mm;

Professional Steel Net Making Machine , Automatic Weaving Machine For Gabion Box
